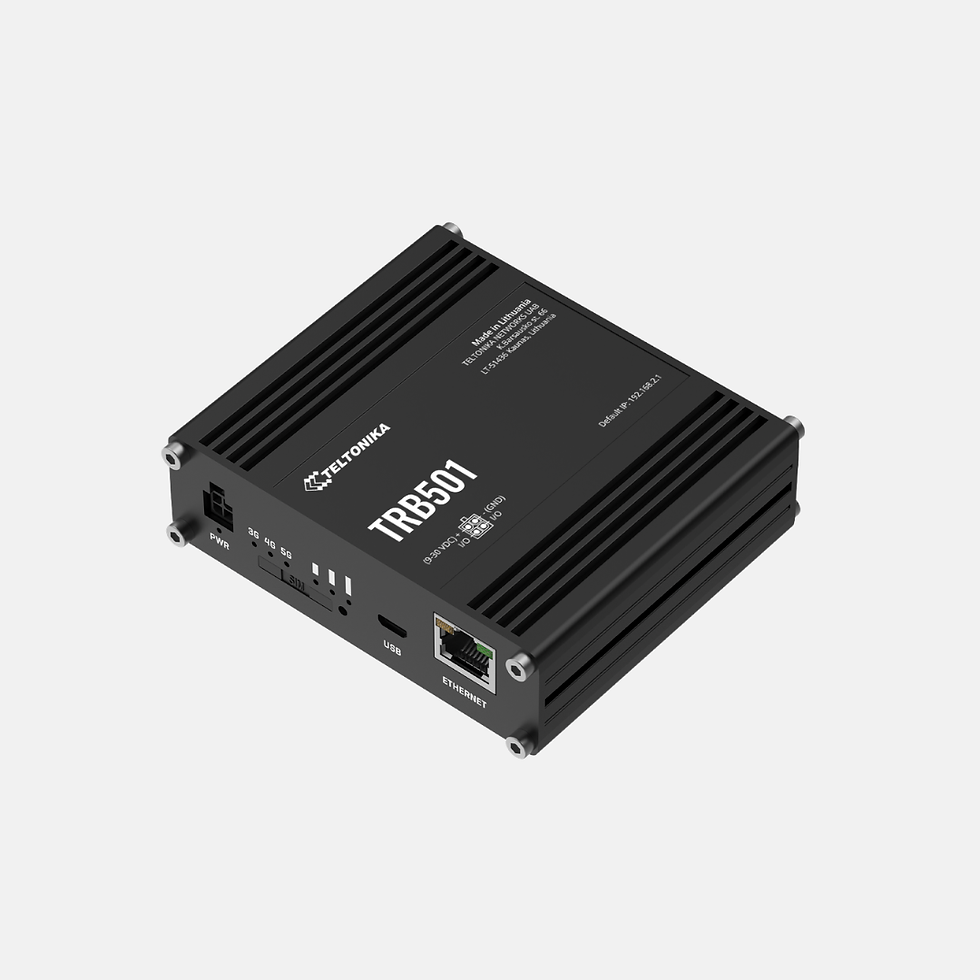

Teltonika TRB501 Industrial 5G Gateway
Experience the power of next-gen connectivity with the TRB501 Industrial 5G Gateway. Designed for demanding environments, it delivers blazing-fast, low-latency 5G for a new era of automation and efficiency. Built to push data faster with a 2.5 Gbps Ethernet and coupled with 5G carrier aggregation (3GPP Release 16), this compact device is ideal for solutions like POS systems, security installations, and IIoT applications.
Specification
Mobile module
5G Sub-6Ghz SA/NSA: 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G: 42 Mbps DL, 5.76Mbps UL
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
ETH
1 x ETH port 10/100/1000/2500Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
Qualcomm, 1.5 Ghz, ARM Cortex-A7
RAM
512 MB
FLASH storage
512 MB
Configurable I/O
2 x Configurable digital Inputs/Outputs on 4-pin power connector. Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high. Digital Output, Open collector output, max 30 V, 300 mA.
Connector
4-pin industrial DC power socket
Input voltage range
9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive)
Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: < 1.5 W, Max: < 5 W
Ethernet
1 x RJ45 ports, 10/100/1000/2500 Mbps
I/O’s
2 x Configurable digital I/O on 4-pin power connector
Status LEDs
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
SIM
1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Power
1 x 4-pin power connector
Antennas
4 x SMA for Mobile
USB
1 x Virtual network interface via micro USB
Casing material
Anodized aluminum housing and panels
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
