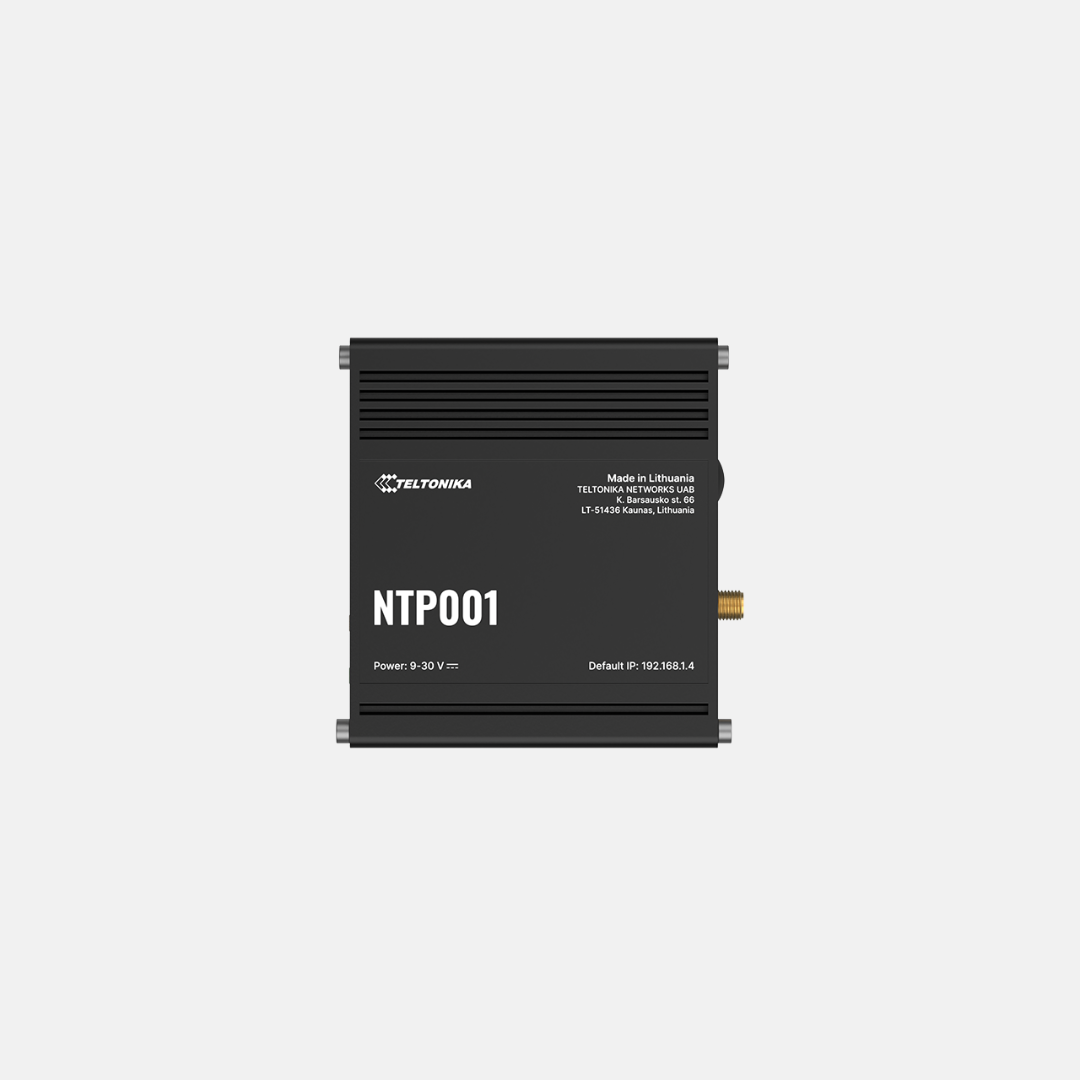

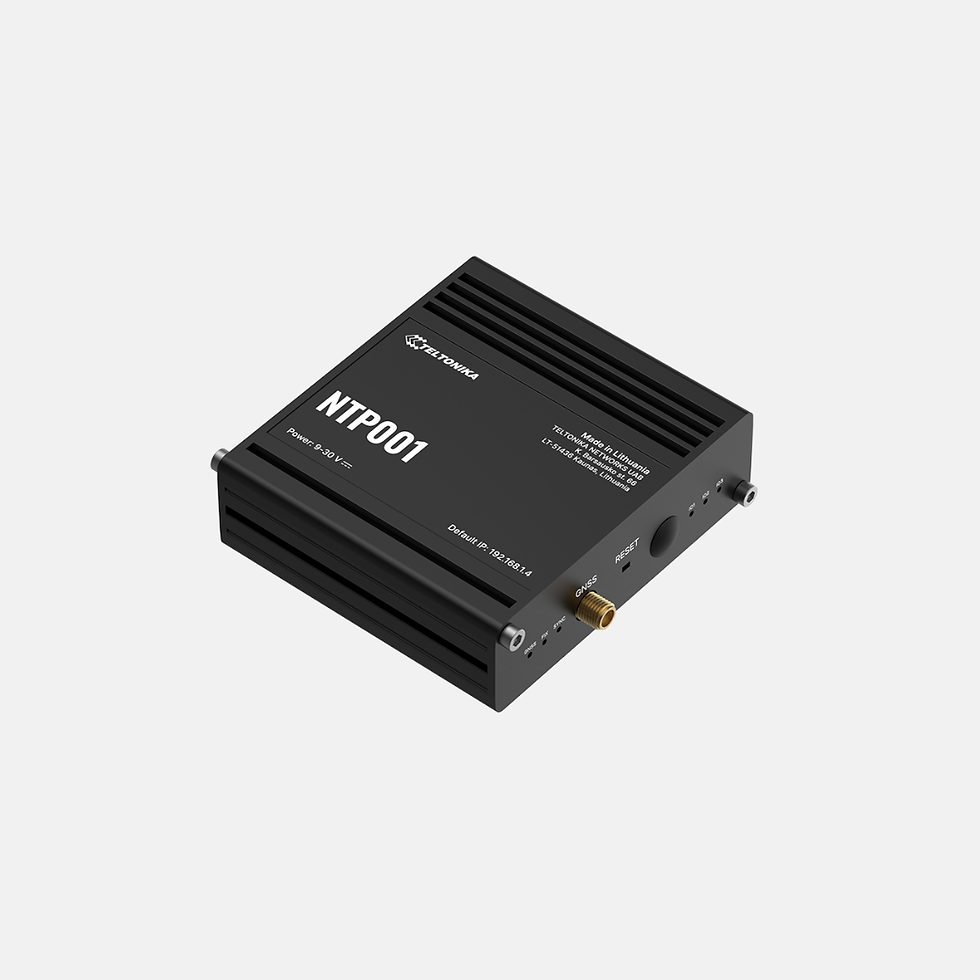

Teltonika NTP001 Server
The NTP001 is a stratum-1 Teltonika NTP server designed for synchronizing accurate, UTC-traceable time in both public and private networks, without the need of Internet access. Utilising its GNSS capabilities, this low-cost NTP server maintains precise, UTC-traceable time. Plug-and-play functionality, a wide variety of interfaces including RS232 and RS485, and a robust security profile all make the NTP001 the perfect NTP server for your network.
Specification
LAN
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Supported modes
Server - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485)
NTP
NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode
Protocol
NTP Stratum 1 Time Server (NTPv4)
NTP Accuracy
Ethernet NTP ±1ms overall
NTP Performance
>300 NTP requests per second (wire speed)
Synchronization Accuracy
LAN synchronization typically 1–10ms
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB, NOR Flash
Input
3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output
3 x Digital Output, Open collector output, max output 30 V, 300 mA
Connector
2-pin in 16-pin industrial terminal block
Input voltage range
9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max
Power consumption
Idle: < 2 W, Max: < 3.5 W
Ethernet
1 x RJ45 ports, 10/100 Mbps
I/O’s
3 x Configurable I/O, 1 x Analog input in 16-pin terminal block
Status LEDs
1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs
Power
1 x 16-pin terminal block
Antennas
1 x SMA for GNSS
RS232
4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485
4-pin in 16-pin terminal block (D+, D-, R+, R-)
Casing material
Anodized aluminum housing and panels
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
