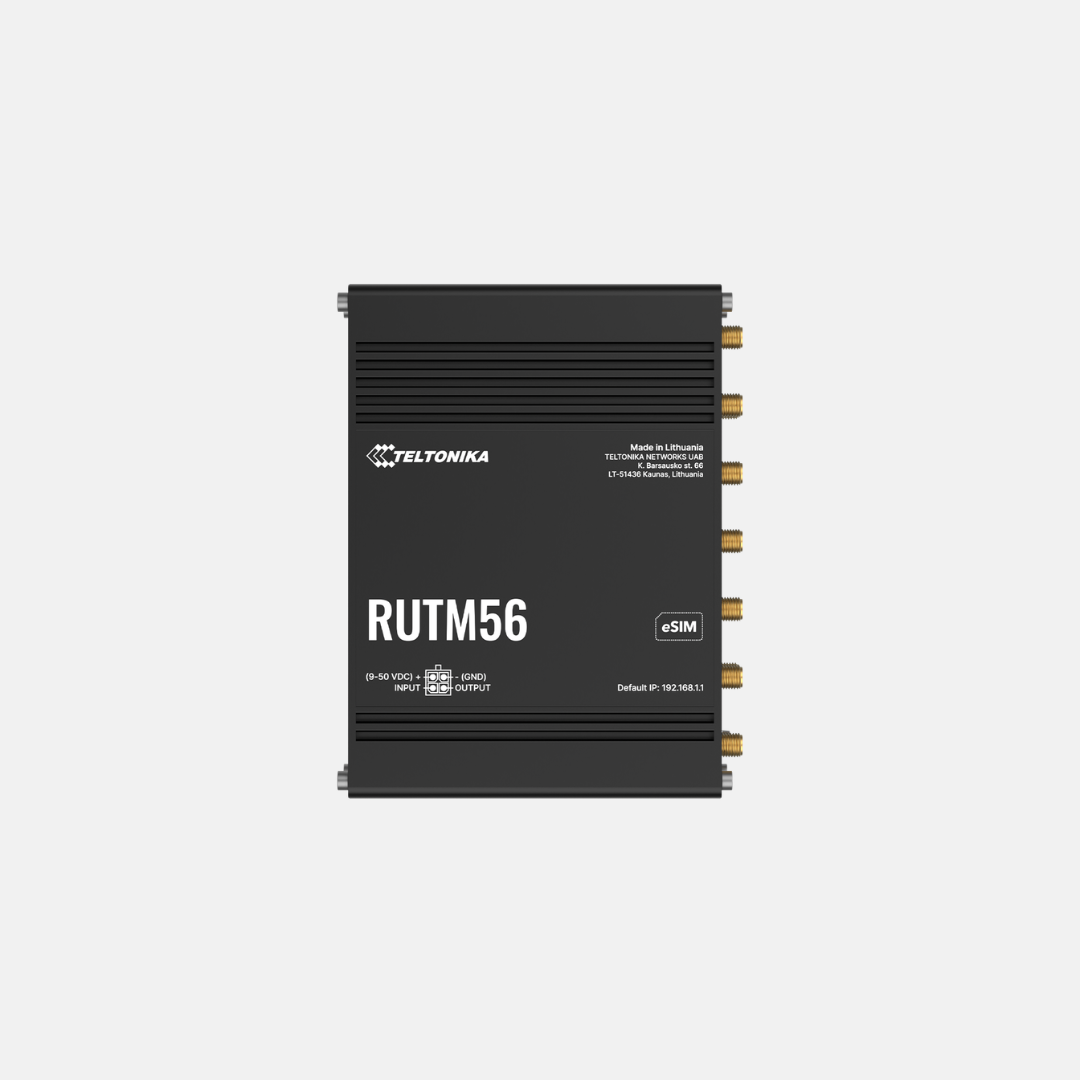

Teltonika RUTM56 Dual Modem Router
The RUTM56 is a future-proof dual modem router designed to bridge the gap between legacy and next-generation networks. Featuring integrated 5G and 4G Cat 4 modems, it ensures continuous operation by providing seamless fallback to 3G and 2G networks. The RUTM56 ensures high-speed, uninterrupted connectivity with dual SIM and eSIM support. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports optimise performance, while RutOS with industrial protocols and versatile VPNs simplify complex IoT setups. This single out-of-the-box product enables rapid connectivity deployment, eliminating lenghty configurations and risks associated with similar multi-device solutions.
Specification
Mobile module
Modem 1: 5G Sub-6 GHz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO) 900/550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO)/UL Cat 18 200Mbps; 3G DL 42Mbps UL 5.76Mbps
Modem 2: 4G (LTE) Cat 4 DL 150Mbps UL 50Mbps; 3G DL 21Mbps UL 5.76Mbps; 2G DL 236.8kbps UL 236.8kbps
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WAN
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256 MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 50 V, 300 mA
Connector
4-pin industrial DC power socket
Input voltage range
9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive)
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption
Idle: < 4.5 W, Max: < 12.5 W
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs
4 x WAN type, 6 x Mobile connection type, 6 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power
1 x 4-pin power connector
Antennas
6 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
Casing material
Anodized aluminum housing and panels
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
