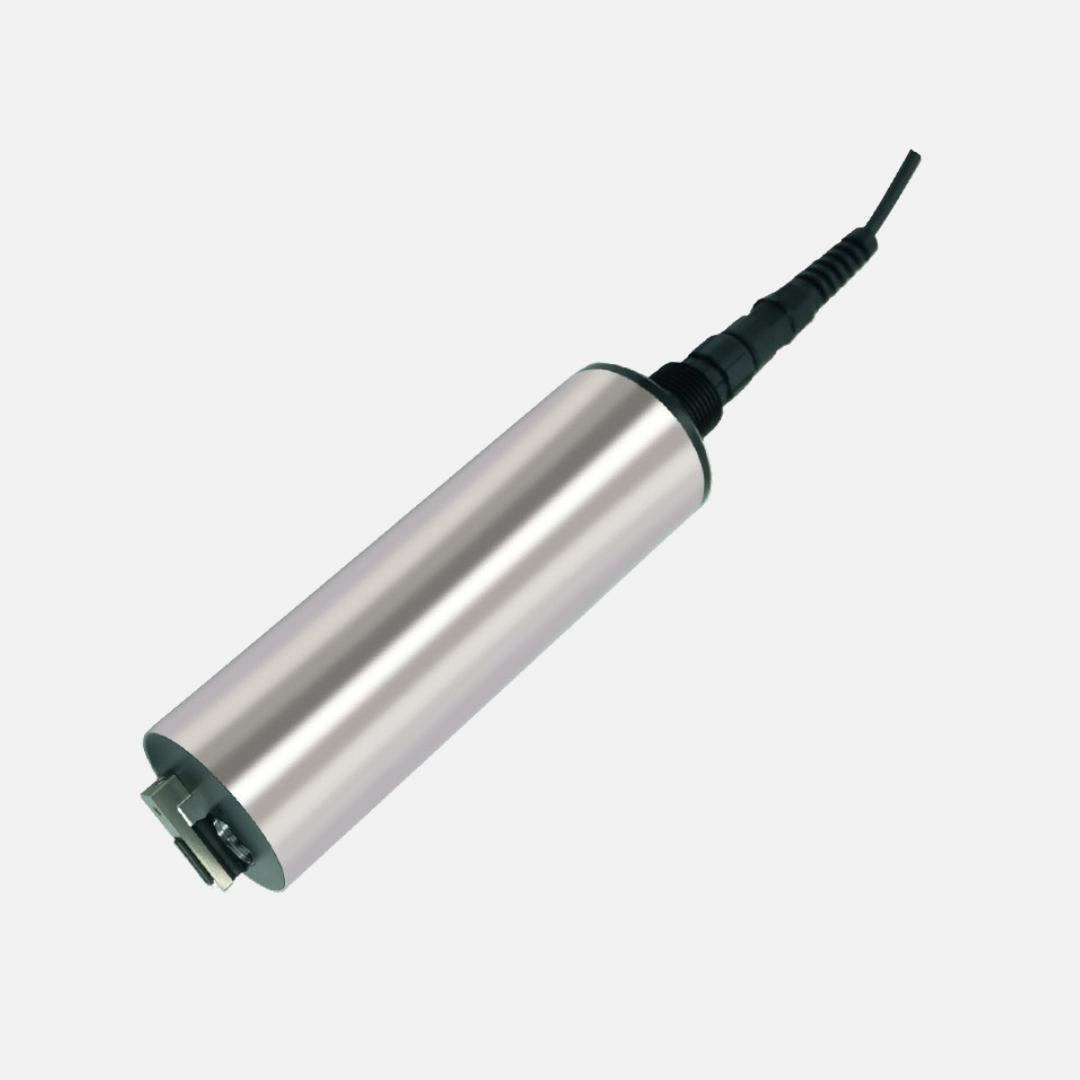

Yosemitech Y518-A Self-cleaning TSS Sensor
- Digital sensor with RS485 output and MODBUS protocol.
- Utilizes infrared double-scattered light technology, compliant with the IS07027 international standard.
- Features sapphire custom optical windows and filters, providing resistance to ambient light interference and color variations.
- Equipped with a self-cleaning brush to prevent microbial attachment and extend the maintenance interval.
- Includes built-in calibration parameters for on-site use and secondary calibration procedures.
Specification
Name
TSS Sensor(high range)
Model
Y518-A
Measuring principle
Infrared scattering method
Range
0-50000mg/L
Accuracy
±5% (depending on the homogeneity of the activated sludge)
Temperature range
0-50℃
Maximum water depth
30m
IP range
IP68
Interface
RS-485，MODBUS protocol
Power supply
0.2W(non-wiping) 0.8W（wiping); DC 9-24V，>500mA
Size
Φ55mm*214mm
Cable length
10 m (default), customizable
Calibration
1-point or 2-point calibration
Sensor housing material
POM+316L
