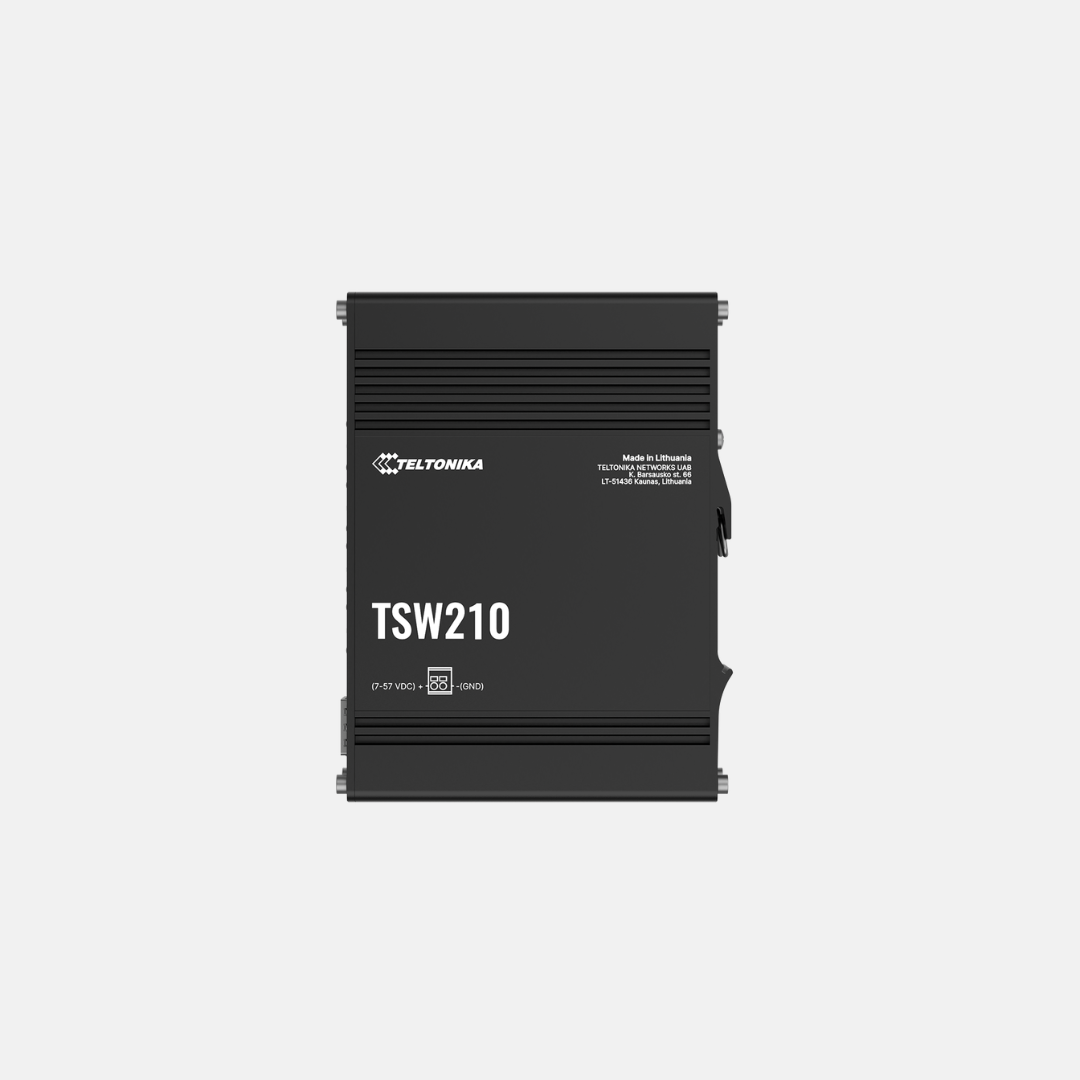

Teltonika TSW210 Industrial Ethernet Switch
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
Specification
ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
Power consumption
Idle: ~1.03 W / Max: 3.71 W
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Casing material
Full aluminium housing
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
