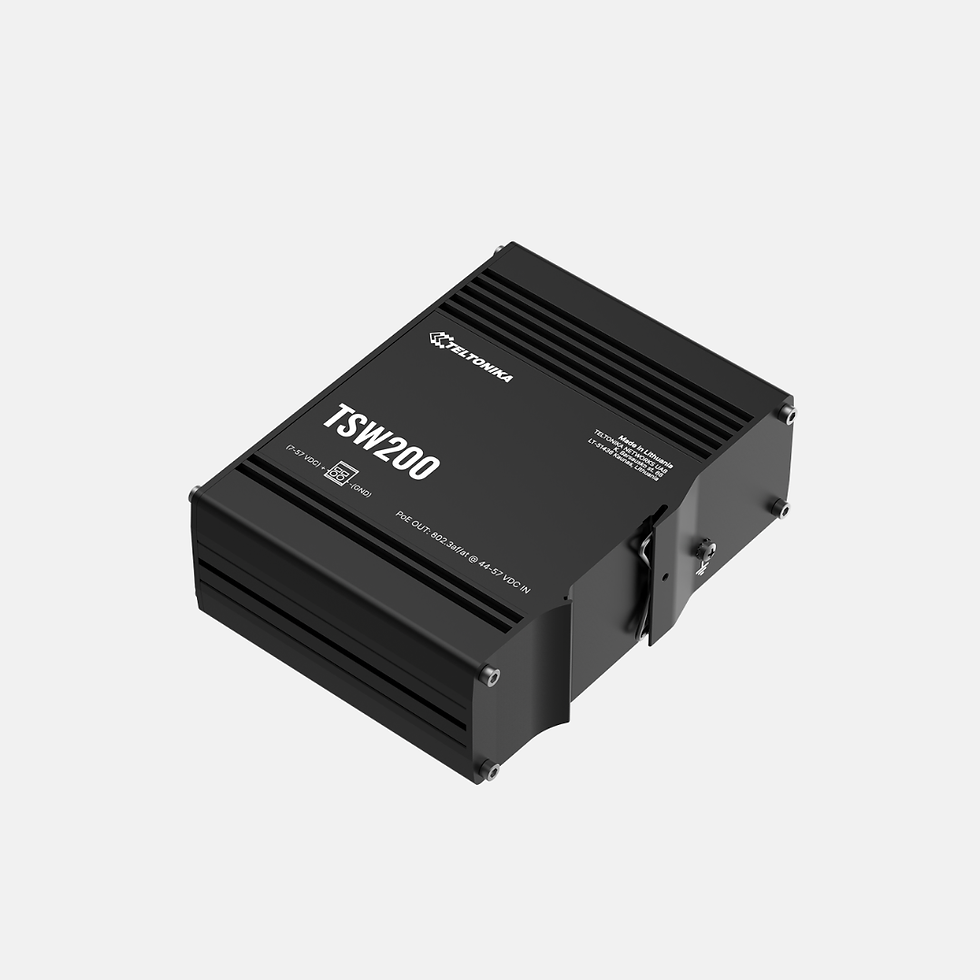

Teltonika TSW200 Industrial POE+ Ethernet Switch
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
Specification
ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z
PoE+ ports
Port 1 - 8
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-Out input voltage range
44 – 57 VDC
Power consumption
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
Fibre
Status LEDs
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Casing material
Full aluminium housing
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
