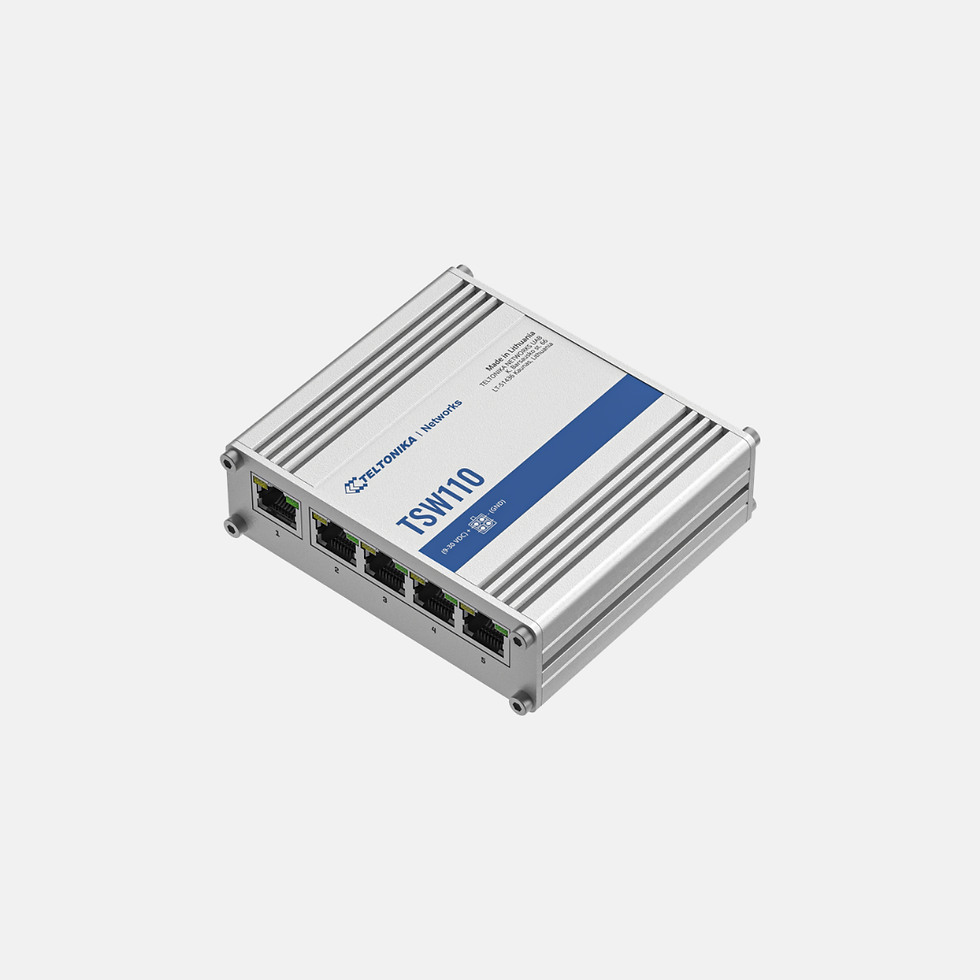

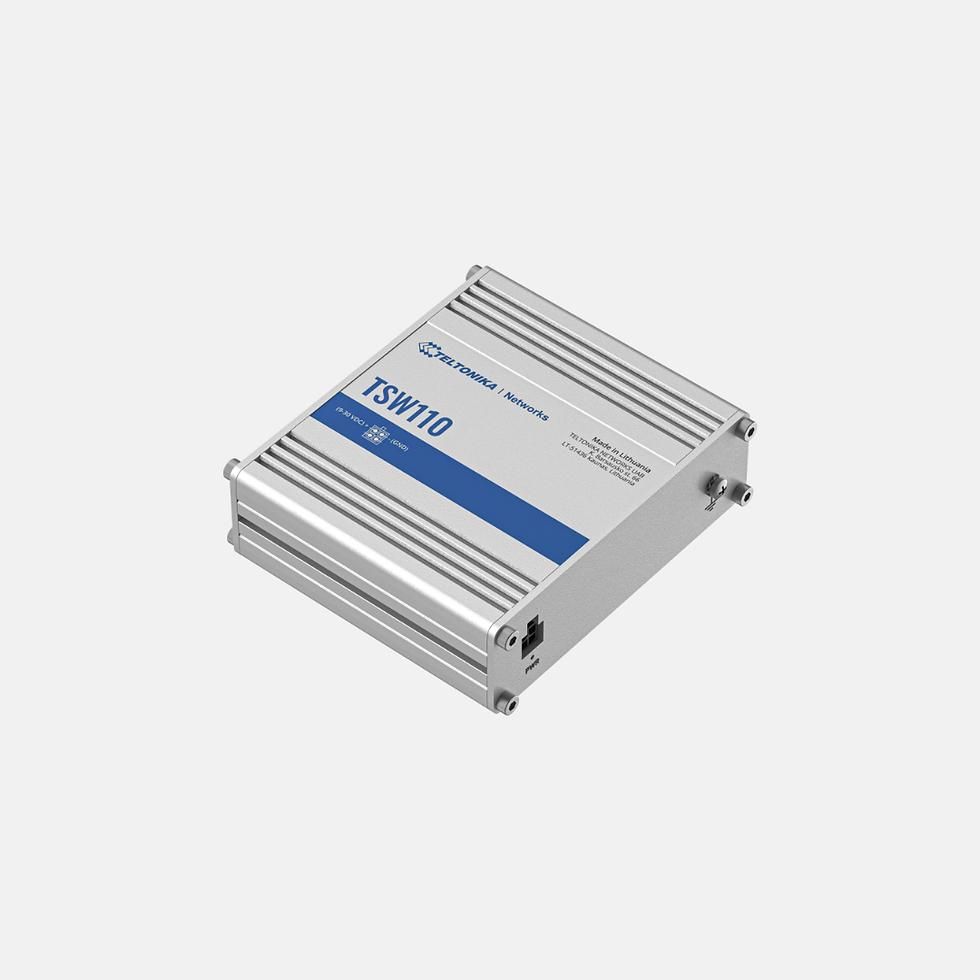

Teltonika TSW110 L2 Unmanaged Ethernet Switch
TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
Specification
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Connector
4-pin industrial DC power socket
Input voltage range
9 – 30 VDC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
< 0.4 W/ < 1.8 W
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs

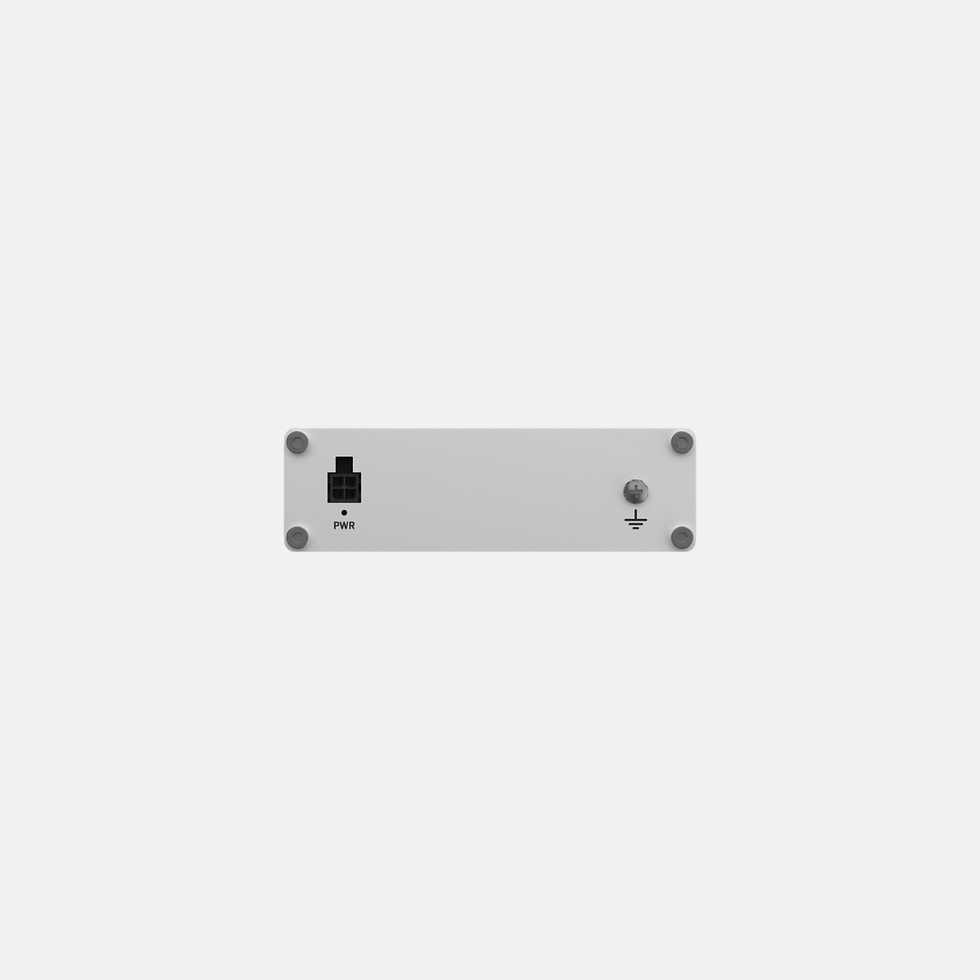

Power
1 x 4-pin power connector
Casing material
Full aluminium housing
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Ingress Protection Rating
IP30
