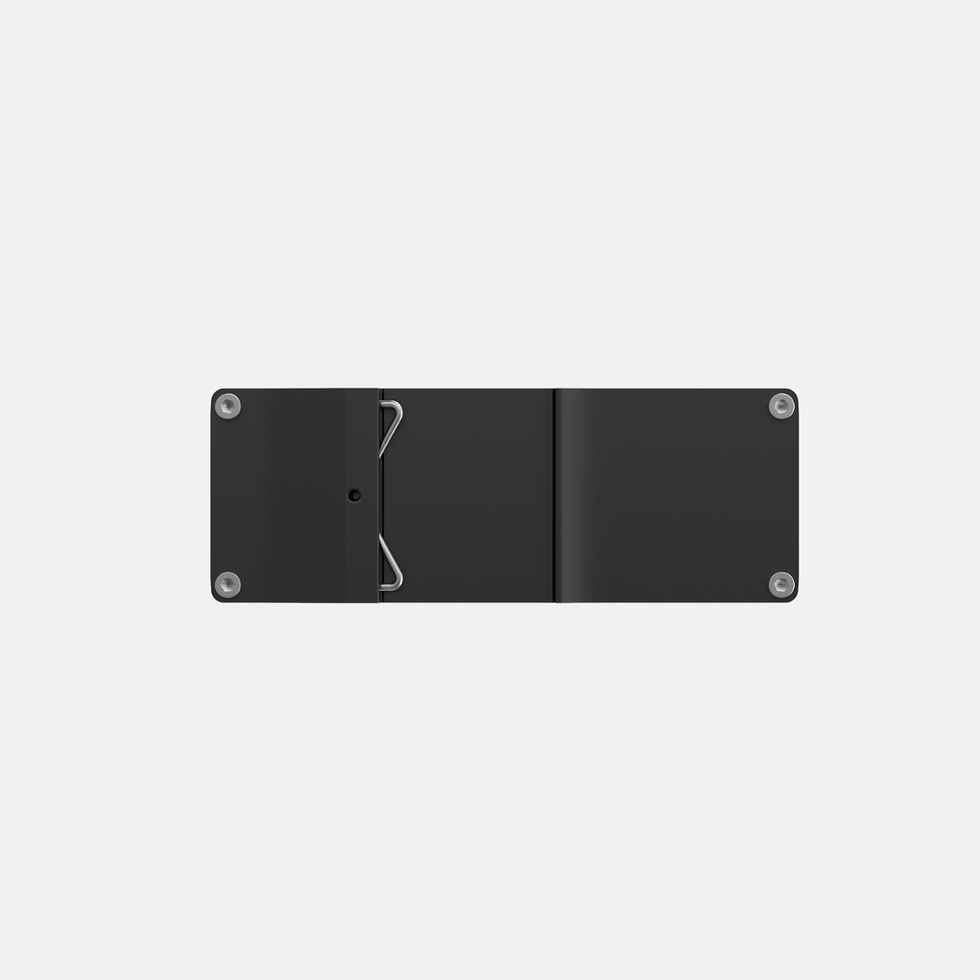

Teltonika TSW030 8-port Ethernet Switch
The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
Specification
Ethernet
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption
Idle: 0.5 W / Max: 1.5 W
Ethernet
8 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 16 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Casing material
Anodized aluminum housing and panels
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
