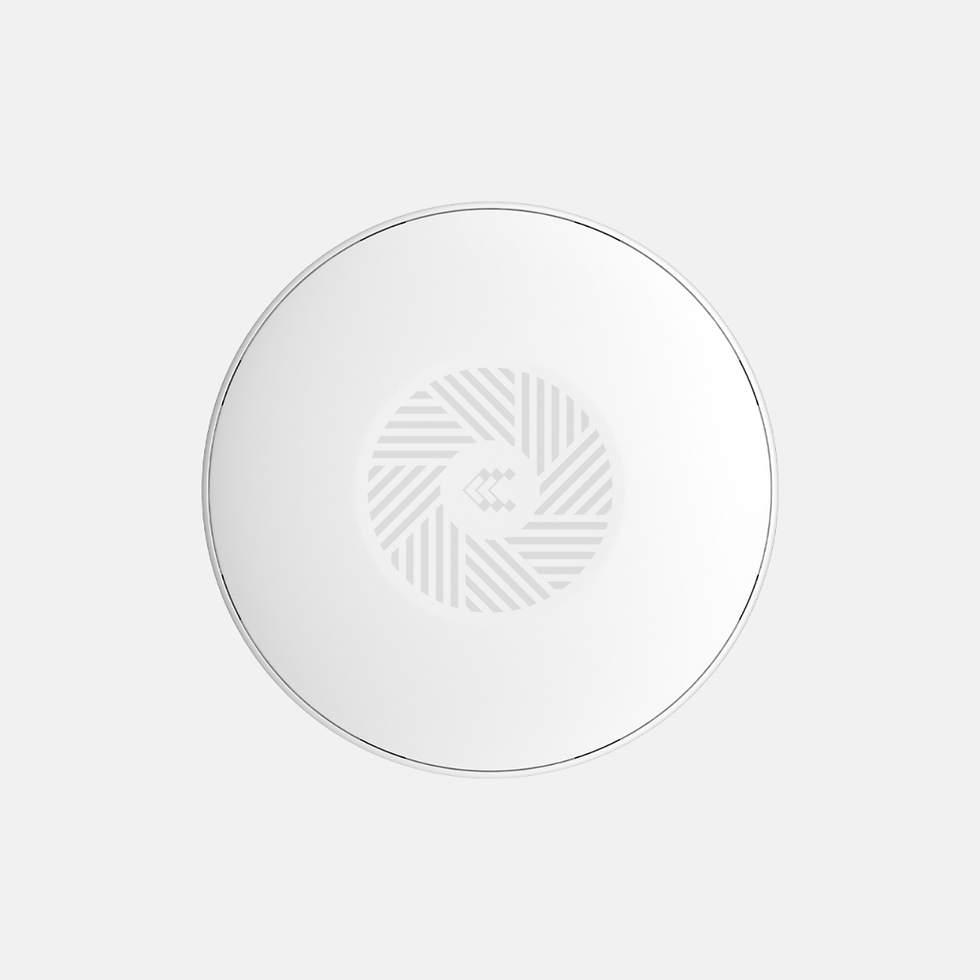

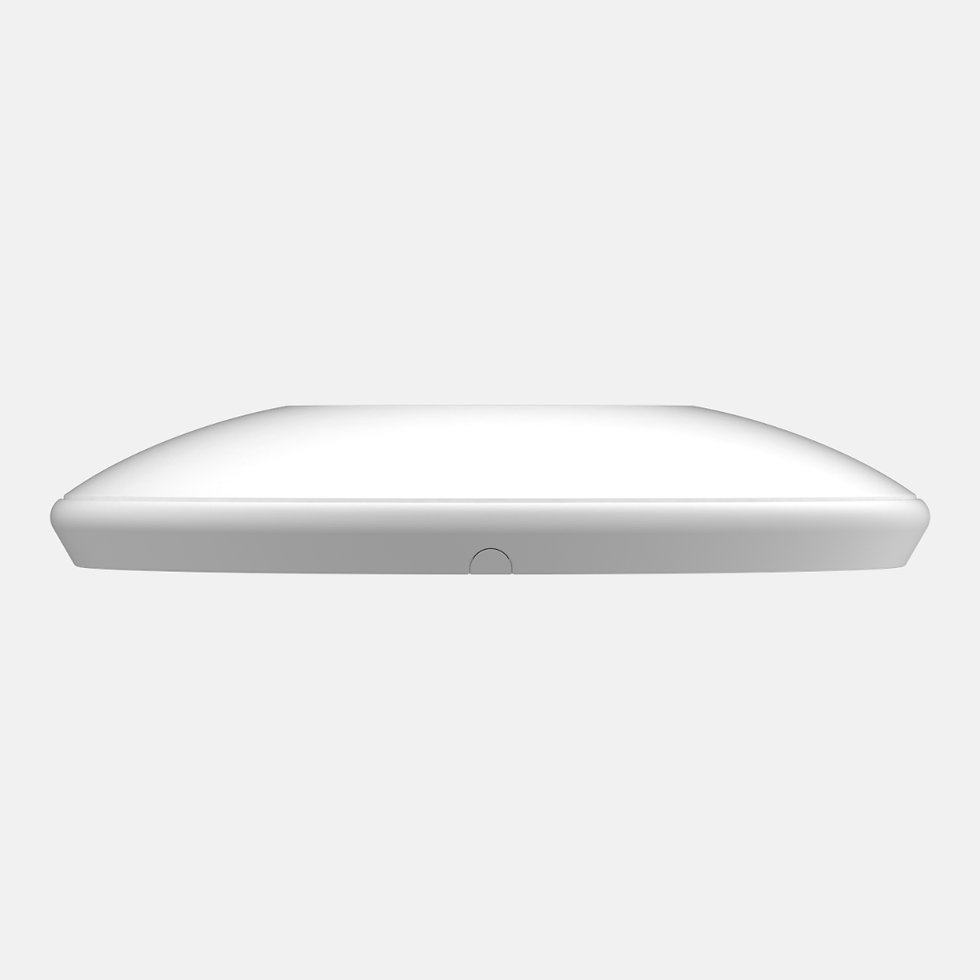

Teltonika TAP400 WiFi Access Point
The TAP400 is a high-performance Wi-Fi 6 access point designed for SMBs that need fast, efficient wireless coverage and simple centralized management. Experience ultra-fast throughput with the dedicated 2.5 GbE uplink and multi-user efficiency of Wi-Fi 6. The device ensures network continuity and seamless expansion with Fast Roaming and Mesh. All network configuration, monitoring, and troubleshooting can be handled remotely via Teltonika RMS, allowing you to seamlessly reach and control other devices on the network. Upgrade your business to high-performance connectivity that covers every corner.
Specification
Wireless mode
802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5GHz and 576 Mbps on 2.4GHz (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Ethernet
1 x RJ45 port 100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
Mediatek, Dual-Core, 1.3 Ghz
RAM
512 MB, DDR3
FLASH storage
16MB SPI NOR Flash, 512MB SPI NAND Flash
Connector
RJ45 Socket
Input voltage range
44.0 – 57.0 V, surge protection >64.4 VDC 10us max
PoE standards
802.3af PoE Class 3
Power consumption
Idle: < 7 W / Max: < 11 W
Ethernet
1 x RJ45 port, 100/1000/2500 Mbps
Status LEDs
1 x Power LED (can be turned off from web-UI)
Antennas
3 x Internal for 2.4 GHz Wi-Fi and 5 GHz Wi-Fi antennas
Antennas specifications
3x 2400 - 2500 MHz, peak gain < 4.33 dBi & 5150 - 5850 MHz, peak gain < 4.9 dBi, omnidirectional
Casing material
UV stabilized plastic, aluminum
Mounting options
AP mounting bracket (for ceiling mount)
Operating temperature
0 °C to 50 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
