Teltonika TAP200 WiFi Access Point
Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.
Specification
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Ethernet
1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
RAM
256 MB, DDR3
FLASH storage
16MB, SPI NOR Flash
Connector
RJ45 Socket
Input voltage range
44.0 – 57.0 V
PoE standards
802.3af PoE Class 1
Power consumption
Idle: < 4 W / Max: < 5.5 W
Ethernet
1 x RJ45 port, 10/100/1000 Mbps
Status LEDs
1 x Power LED (can be turned off from web-UI)
Antennas
2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
Antennas specifications
2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
Casing material
Casing material
Mounting options

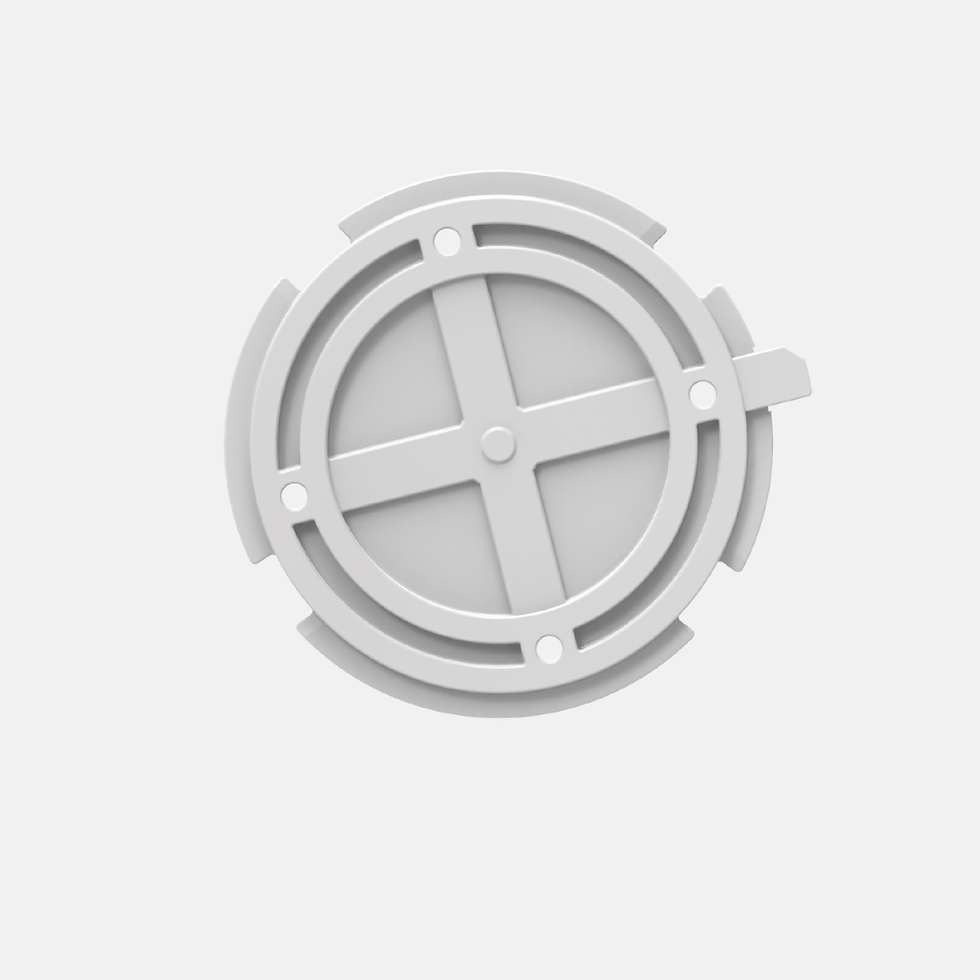

AP mounting bracket (for ceiling mount)
Operating temperature
-40 °C to 50 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
