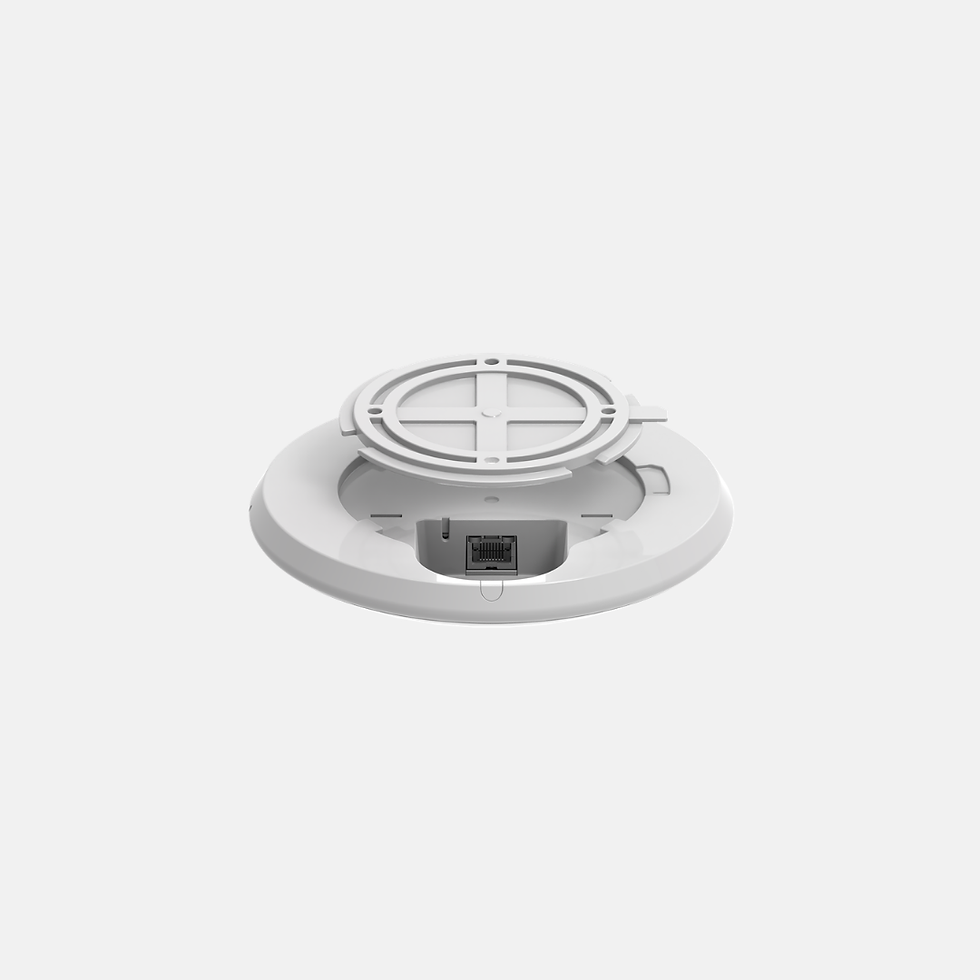

Teltonika TAP100 WiFi Access Point
TAP100 is the first-ever Teltonika Networks Access Point, perfect for strengthening Wi-Fi coverage in small enterprise and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed with simplicity and ease of installation in mind.
Specification
Wireless mode
802.11b/g/n (Wi-Fi 4)
Ethernet
1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
64 MB, DDR2
FLASH storage
16 MB, SPI Flash
Connector
RJ45 Socket
Input voltage range
44.0 – 57.0 V
PoE standards
802.3af PoE Class 1
Power consumption
< 2 W Max
Ethernet
1 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED (can be turned off from web-UI)
Antennas
2 x Internal for 2.4 GHz Wi-Fi
Antennas specifications
2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
Casing material
UV stabilized plastic
Mounting options
AP mounting bracket (for ceiling mount)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
