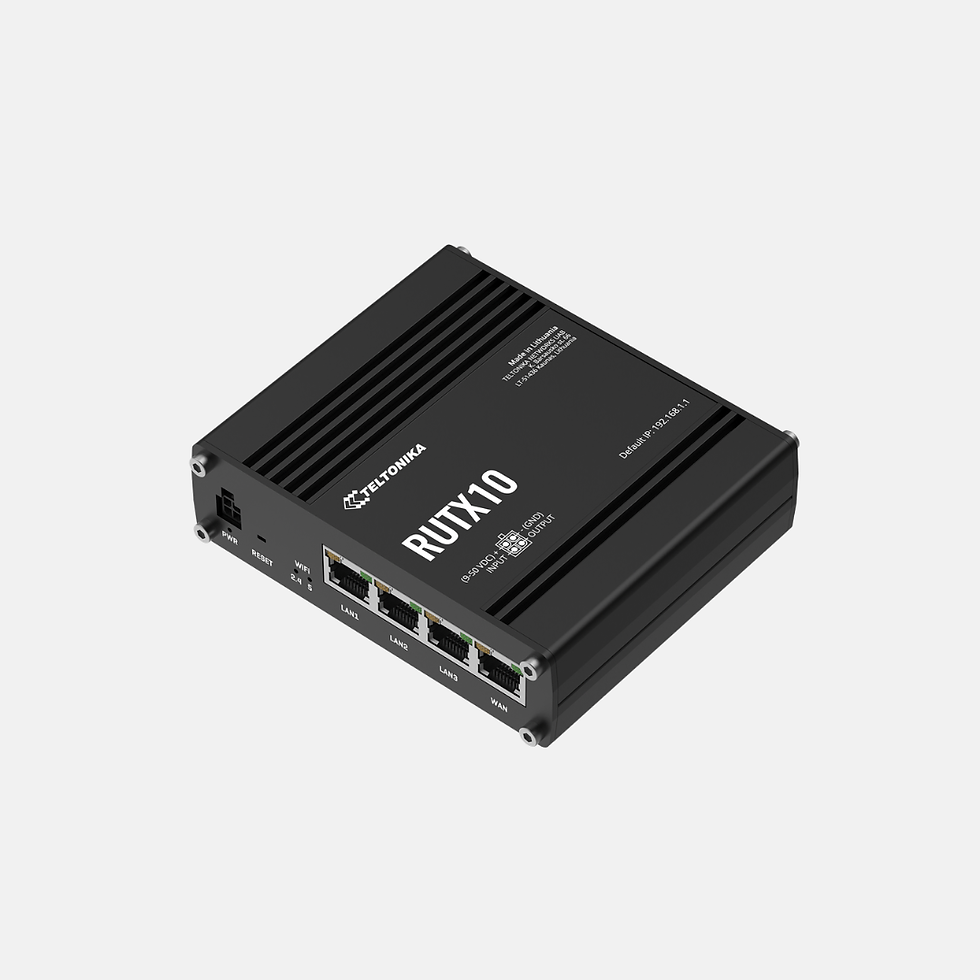

Teltonika RUTX10 Professional Ethernet Router
This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications
Specification
WAN
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Bluetooth 5.0
Bluetooth low energy (LE) for short range communication
CPU
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB, DDR3
FLASH storage
256 MB, SPI Flash
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
Connector
4-pin industrial DC power socket
Input voltage range
9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption
9 W Max
Ethernet
4 x RJ45 ports, 10/100/1000 Mbps
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs
8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Power
1 x 4-pin power connector
Antennas
2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth
USB
1 x USB A port for external devices
Casing material
Aluminium housing
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
