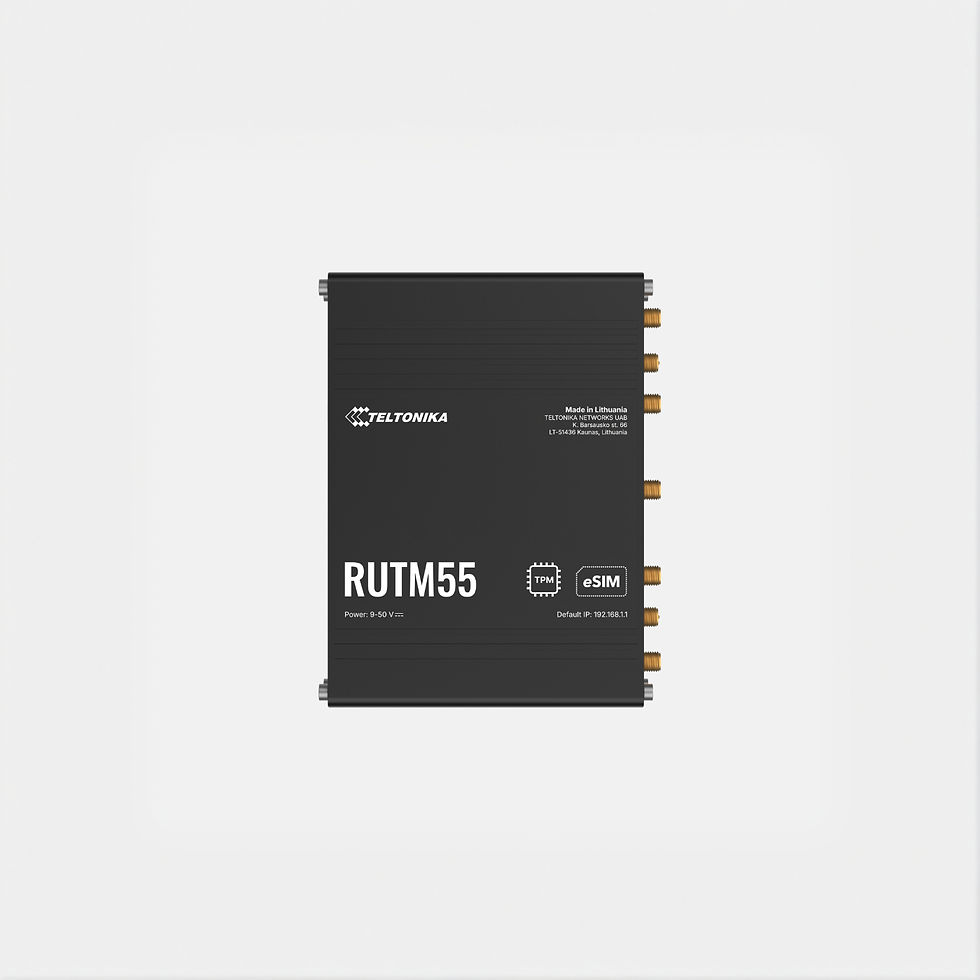

Teltonika RUTM55 Industrial Router
Bring 5G to your industrial networks with RUTM55. This advanced router delivers ultra-high 5G speeds (up to 3.4 Gbps) coupled with versatile 4 x Gigabit Ethernet and Wi-Fi 5 connectivity options. Ensure maximum uptime with dual SIM/eSIM auto-failover. Connect legacy RS232/RS485 devices directly, protecting investments and modernizing infrastructure. Tailored for industrial demands via 3-PIN power input, RUTM55 provides robust, future-proof reliability.
Specification
Mobile module
5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
WAN
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256 MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Input
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 50 V), 1 x analog input (0 - 24 V)
Output
1 x Isolated open collector output (requires external voltage) (50 V, 500 mA), 1 x SPST relay output (24 V, 10 A)
Connector
3-pos plugable terminal block
Input voltage range
9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive)
Passive PoE over Port 1; 9-50VDC; "Mode B" style. Not compatible with 802.3af/at/bt.
Power consumption
Idle: < 8.5 W, Max: < 14.5 W
Ethernet
4 x RJ45 ports, 10/100/1000 Mbps
I/O’s
1 x digital dry input, 1 x digital galvanically isolated input, 1 x analog input, 1 x Isolated open collector output, 1 x SPST relay output
Status LEDs
3 x Mobile connection type, 3 x Mobile connection strength, 6 x LAN status, 1 x Power
SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, internal SIM holders
Power
1 x 3-pin power connector
Antennas
4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB
1 x USB A port for external devices
RS232
2 pins in 16-pin terminal block
RS485
2 pins in 16-pin terminal block
Casing material
Anodized aluminum housing and panels
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
