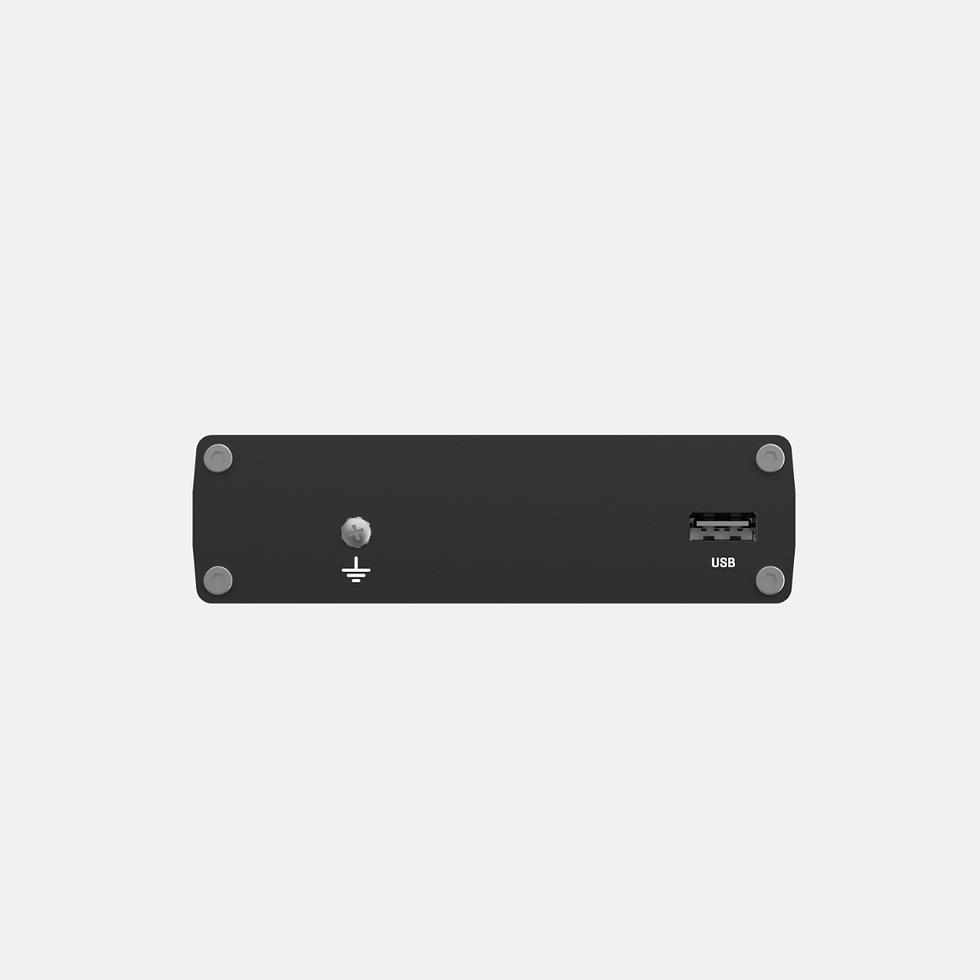

Teltonika RUTM08 Industrial Wired Router
The RUTM08 is an industrial wired router designed for establishing reliable cable connections across a broad range of industrial applications. The router has four Gigabit RJ45 ports, which enable rapid network and data transmission between connected endpoints. The RUTM08 can support up to 128 tag/port-based VLANs for enhanced network flexibility as well as multiple VPNs and M2M communication protocols, which are particularly relevant in industrial environments.
Specification
WAN
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Ethernet
4 x RJ45 ports, 10/100/1000 Mbps
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs
8 x LAN status LEDs, 1 x Power LED
Power
1 x 4-pin power connector
USB
1 x USB A port for external devices
Reset
Reboot/User default reset/Factory reset button
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 50 V, 300 mA
Connector
4-pin industrial DC power socket
Input voltage range
9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive)
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption
Idle: < 1.8 W / Max: < 5.5 W
Casing material
Anodized aluminum housing and panels
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
