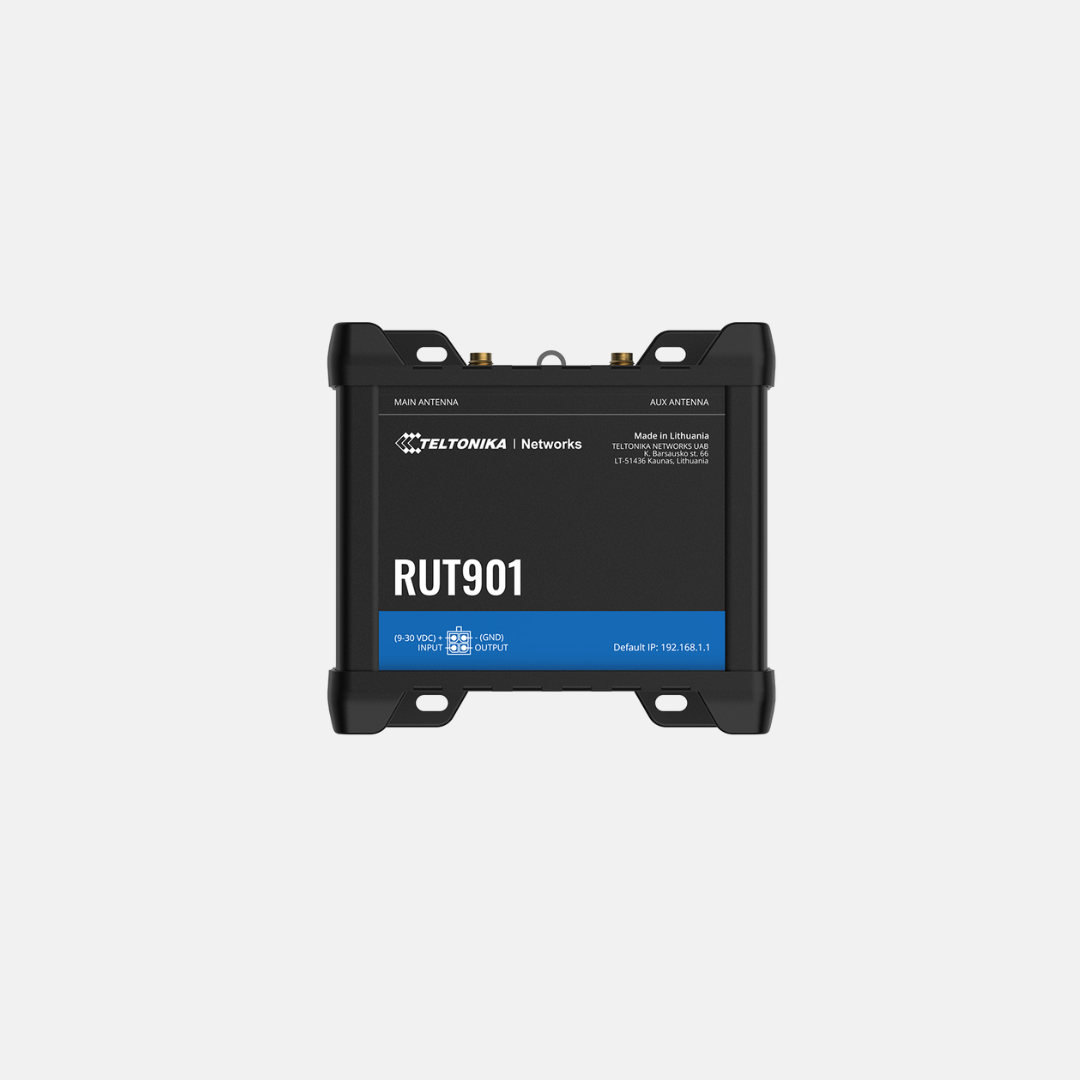

Teltonika RUT901 Industrial Cellular Router

Mobile module

4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Wireless mode

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN

3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Ethernet

4 x RJ45 ports, 10/100 Mbps

I/O’s

1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs

1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

Power

1 x 4-pin power connector

Antennas

2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors

CPU

Mediatek, 580 MHz, MIPS 24KEc

RAM

128 MB, DDR2

FLASH storage

16 MB, SPI Flash

Input

1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output

1 x Digital Output, Open collector output, max output 30 V, 300 mA

Connector

4-pin industrial DC power socket

Input voltage range

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption

< 2 W idle, < 7 W Max

Casing material

Aluminium housing, plastic panels

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30
