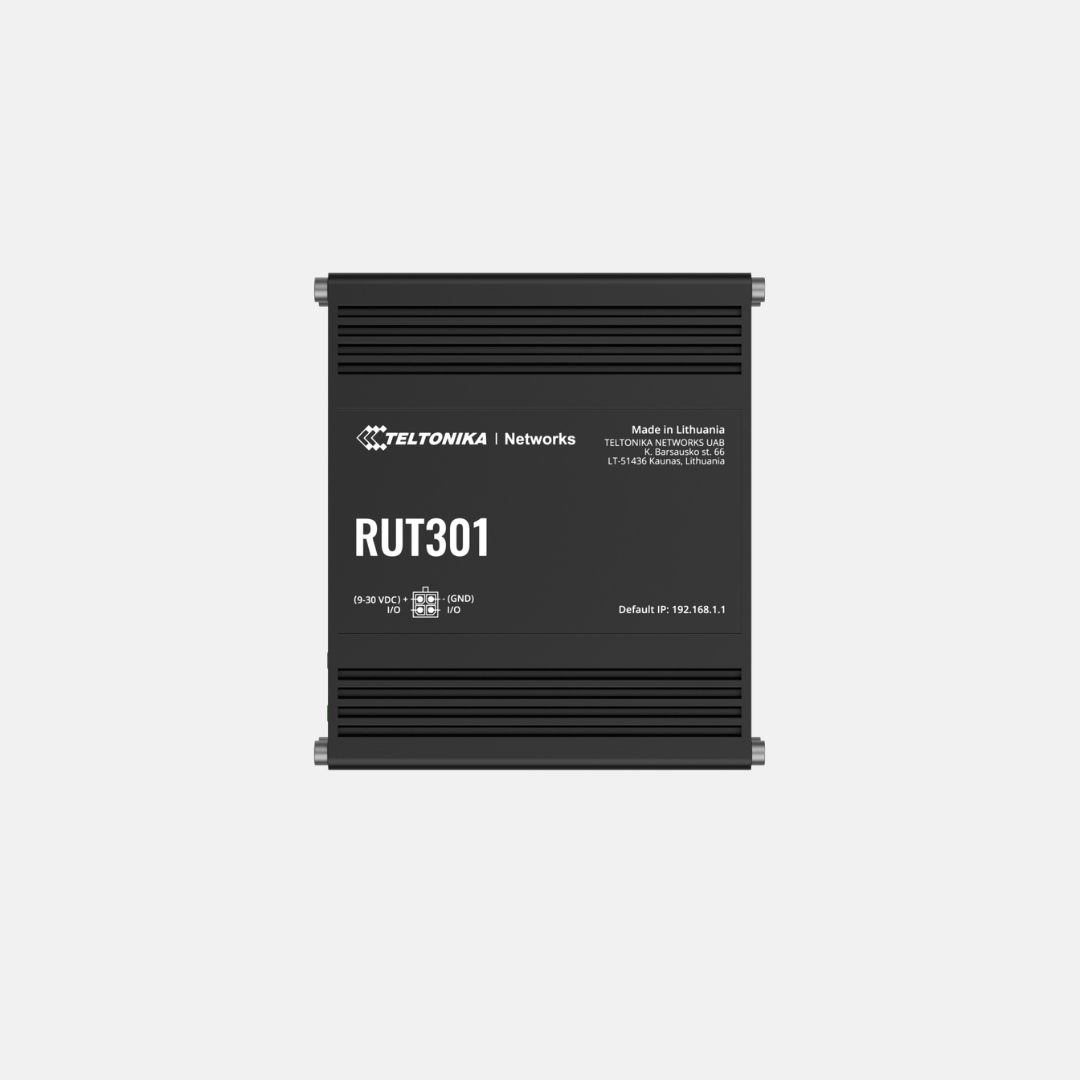

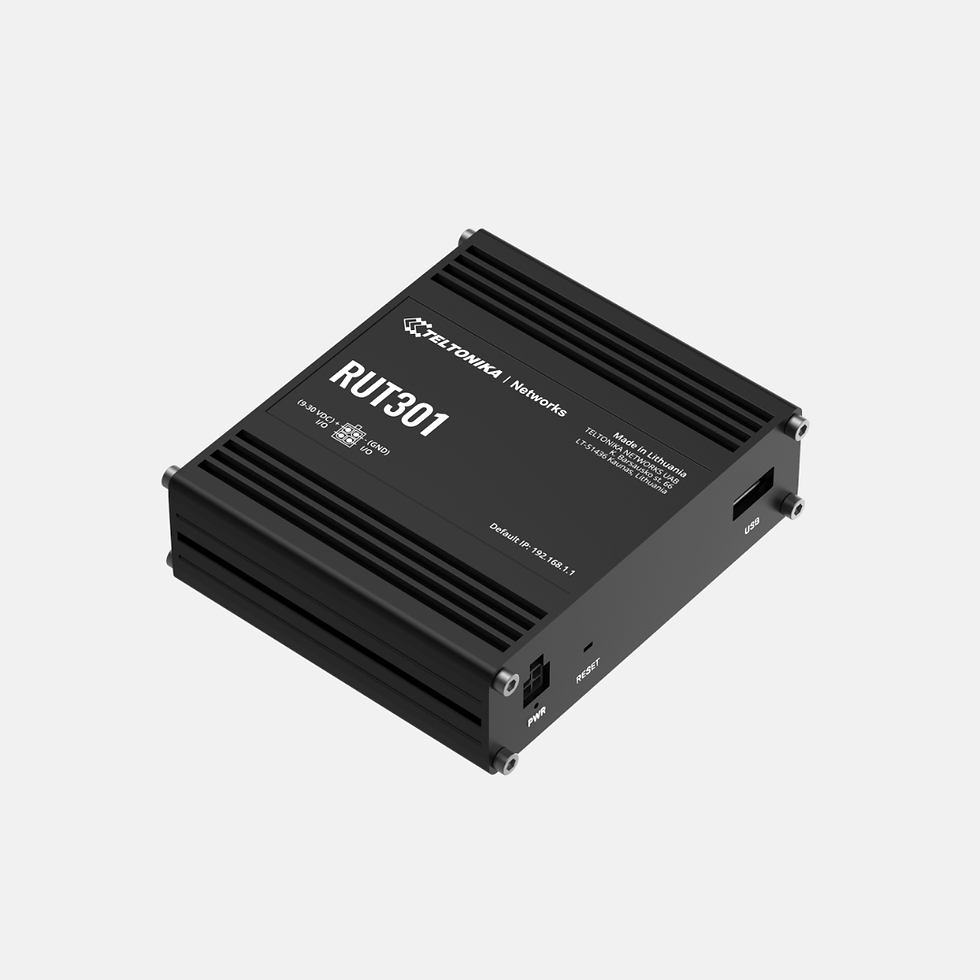

Teltonika RUT301 Industrial Ethernet Router
The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.
Specification
WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN
4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Ethernet
5 x RJ45 ports, 10/100 Mbps
I/O’s
2 x Configurable digital I/O on 4-pin power connector
Status LEDs
1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED
Power
1 x 4-pin power connector
USB
1 x USB A port for external devices
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB serial NOR flash
Data rate
USB 2.0
Applications
Samba share, USB-to-serial
External devices
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input
Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output
Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
Connector
4-pin industrial DC power socket
Input voltage range
9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)
Passive PoE (Optional - different hardware required; contact your sales manager)
Power consumption
Idle: < 0.8 W, Max: < 3.8 W
Casing material
Aluminium housing
Dimensions (W x H x D)
100 x 30 x 85 mm
Weight
233 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
