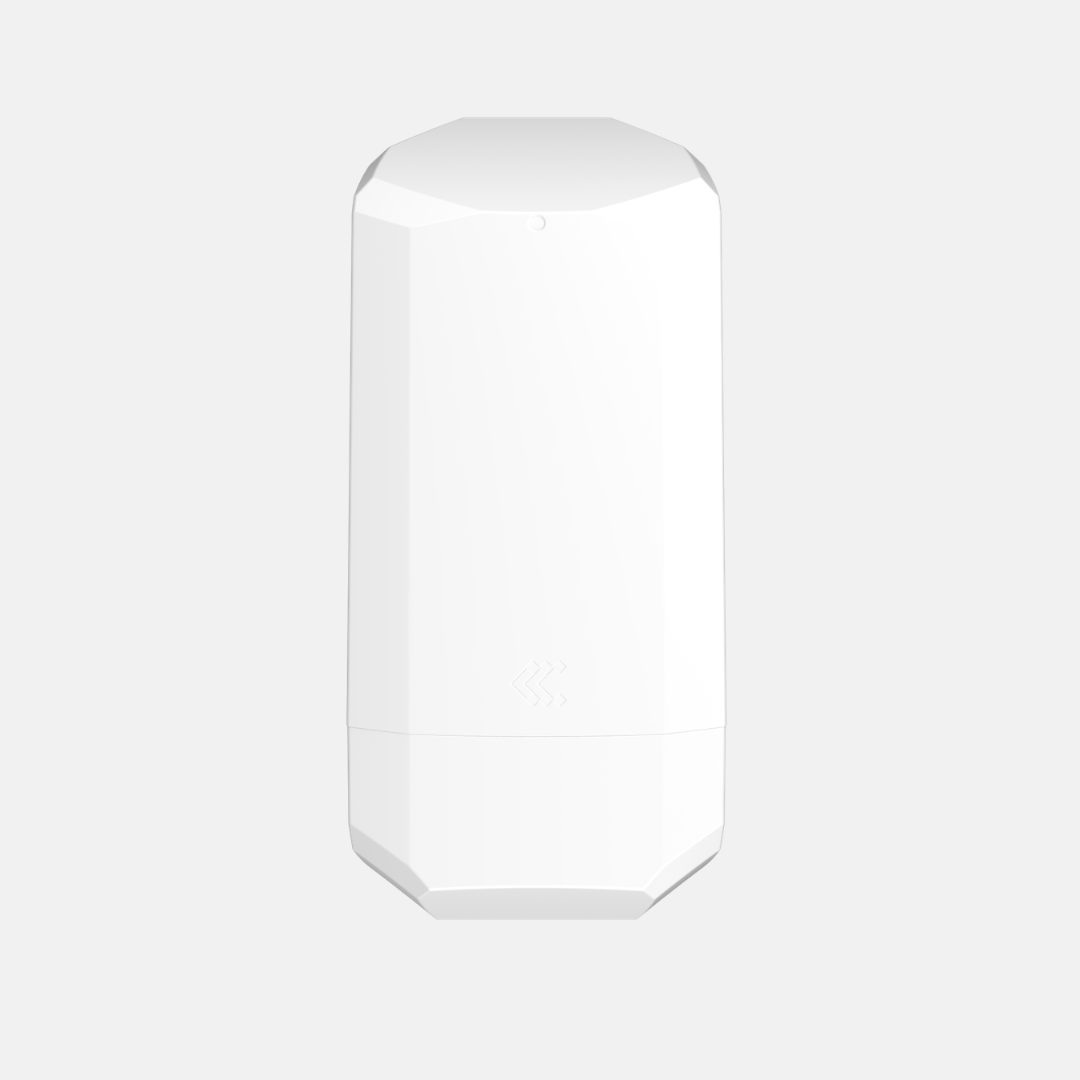

Teltonika OTD140 4G Outdoor Router
The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.
Specification
Mobile module
4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Ethernet
2 x RJ45 ports, 10/100 Mbps
Status LEDs
3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power
RJ45, PoE In, 42.5 – 57.0 VDC
Antennas
2 x Internal antennas
Antennas specifications
2 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3, gain <4.5 dBi, omnidirectional
LAN
2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB
FLASH storage
16 MB
PoE ports
1 x PoE In
PoE standards
802.3af/at
PoE ports
1 x PoE Out
PoE standards
802.3af Alternative B
PoE Max Power per Port (at PSE)
15 W Max (power supply unit dependent)
Connector
RJ45 Socket
Input voltage range
42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Input voltage range for PoE
42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption
Idle: < 2.5 W / Max: < 6 W / PoE Max < 21 W
Casing material
Plastic (PC+ASA)
Mounting options
Mounting bracket (for vertical flat surface or pole mounting)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP55
