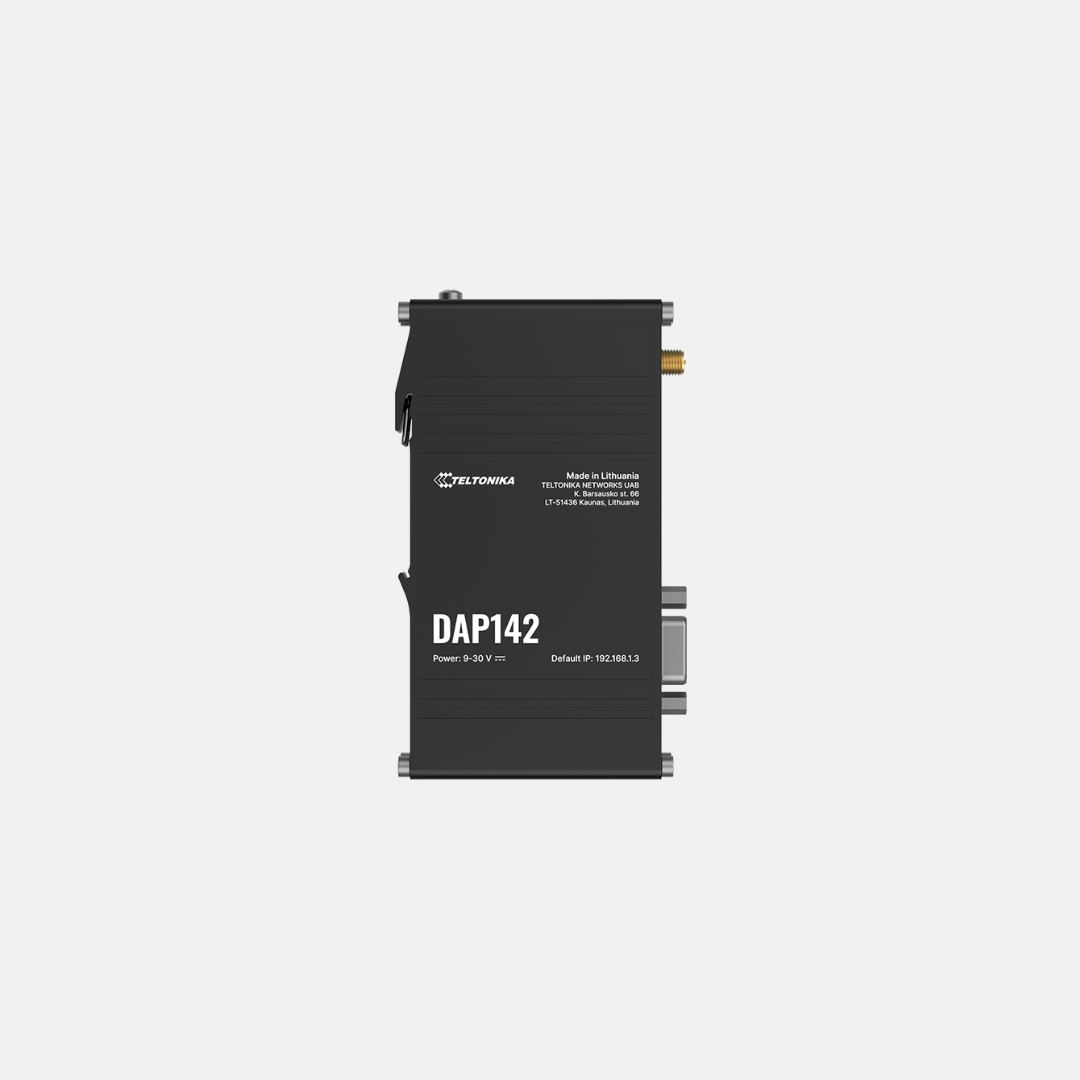

Teltonika DAP142 RS232 Wireless Access Point
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
Specification
Wireless mode
IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
LAN
2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB serial NOR flash
Connector
3-pos plugable terminal block
Input voltage range
9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: < 1 W / Max: < 2 W
Ethernet
2 x RJ45 ports, 10/100 Mbps
Status LEDs
2 x LAN type LED, 1 x Power LED
Power
1 x 3-pin power connector
Antennas
1 x RP-SMA for Wi-Fi
RS232
1 x DB9 socket
Casing material
Aluminium housing
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
