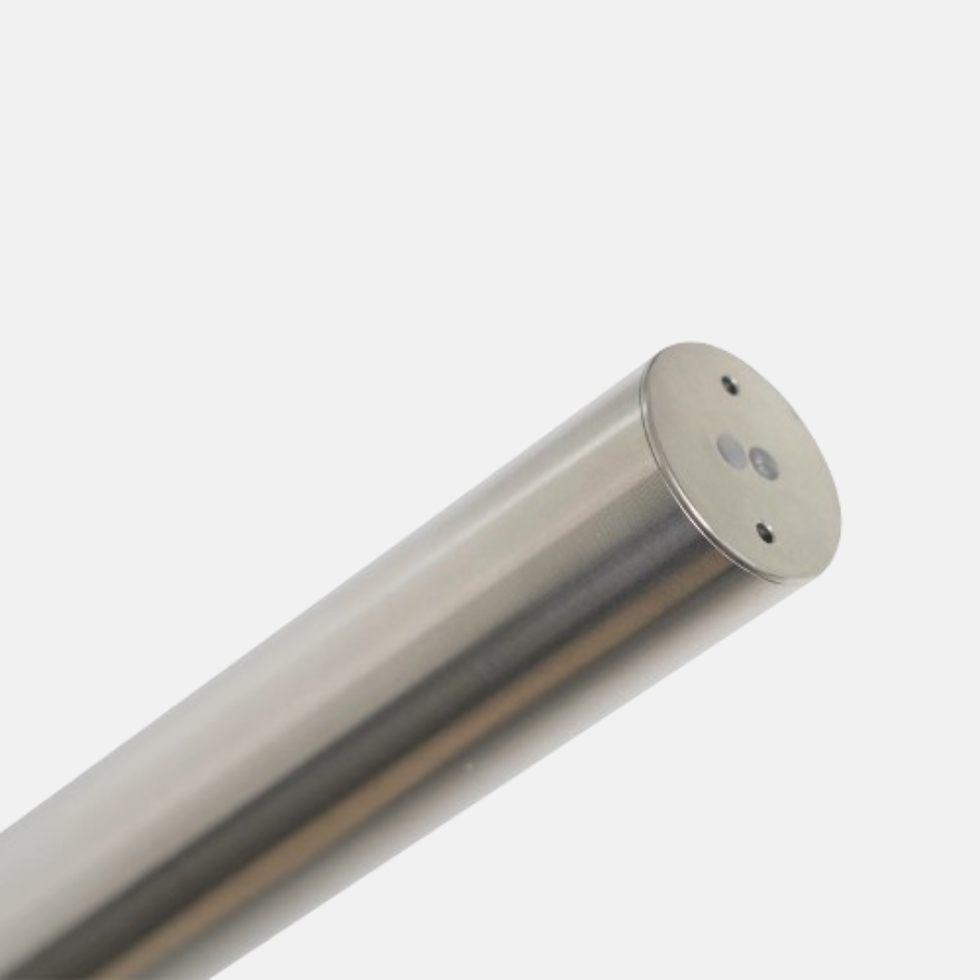

Real-time TSS Sensor
The Real-time TSS sensor is a high-precision instrument designed for continuous water monitoring. Utilizing advanced optical technology and a 90° scattered light measurement. This PUB-approved sensor is a customise optical devices, compact size, and easy installation and maintenance, minimizing ambient light interference for better repeatability and stability. Built to withstand harsh environments, The Real-time TSS sensor offers reliable long-term deployment with minimal maintenance, making it ideal for environmental monitoring, water treatment, and industrial applications, seamlessly integrating into existing data acquisition systems for effective water quality management.
Details
Advanced Optical Technology
Utilizes a 90° scattered light measurement principle, in compliance with ISO7027 standards, for precise and reliable turbidity measurements.
Compact and Robust Design
Features a small size for easy installation and a durable build to withstand harsh environmental conditions, ensuring long-term reliability.
Real-Time Monitoring
Provides continuous, accurate real-time turbidity data essential for effective water quality management.
Minimal Maintenance
Engineered to reduce maintenance needs, with design elements that help prevent fouling and ensure stable performance over time.
Ambient Light Interference Resistance
Custom optical devices minimize the impact of ambient light, enhancing measurement repeatability and stability.
PUB Approved
Recognized by the Public Utilities Board (PUB), ensuring high standards of quality and performance.
Easy Integration
Seamlessly integrates with existing data acquisition systems for comprehensive and efficient water quality monitoring.
Wide Application Range
Ideal for environmental monitoring, water treatment plants, wastewater management, and various industrial processes.
Specifications
Product Specification
Principle
90° light scattering method
Range
0.1~1000 mgl
Resolution
5% or 0.3 mgl
Housing IP Rating
IP68
Maximum pressure
6bar
Temperature range
0 ~ 50℃
Sensor interface
Support RS-485，Modbus protocols
Power Requirements
DC 5~24V,current <50mA
Sensor Size
Φ22mm*175.5mm
Construction
M22*1.5 (optional accessories can be transferred, NPT3/4 thread)
Probe cable length
5m (default), customizable
Sensor material
Ti
Calibrate
Zero-point, one-point or two-points calibration
