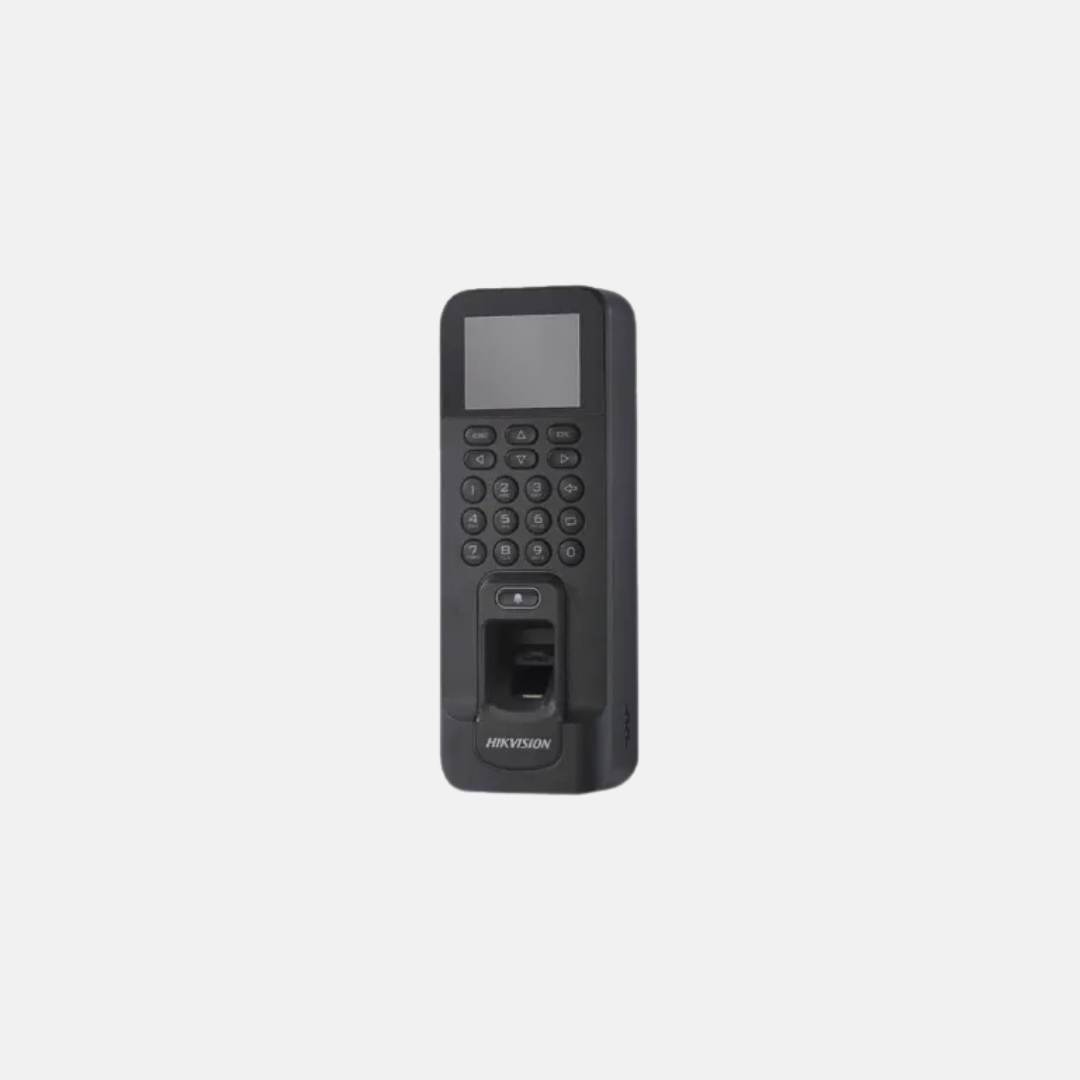

Hikvision Fingerprint Access Control Terminal | DS-K1T804AMF / DS-K1T804AEF

Hikvision Fingerprint Access Control Terminal | DS-K1T804AMF / DS-K1T804AEF

$0.00Price

- Built-in card reader for Mifare1 card

- Supports Wiegand interface

- Alarm input and output interface

Quantity

  • Specification

    Product Specifications

    Operation system
    Linux
    Display Size
    2.4-inch
    Resolution
    320 × 240
    Type
    LCD-TFT display screen
    Audio output
    1 loudspeaker, 1 buzzer
    Wired network
    TCP/IP, 10/100Mbps, self-adaptive
    Wi-Fi
    Support
    Card capacity
    3000
    Fingerprint capacity
    3000
    Event capacity
    100,000
    Card type
    Mifare 1 card
    Card reading distance
    0 to 4.5 cm
    Fingerprint module
    Optical fingerprint module
    Power supply
    12 VDC/1 A
    Working temperature
    -10 °C to +55 °C
    Dimensions
    205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
    Installation
    Surface mounting
