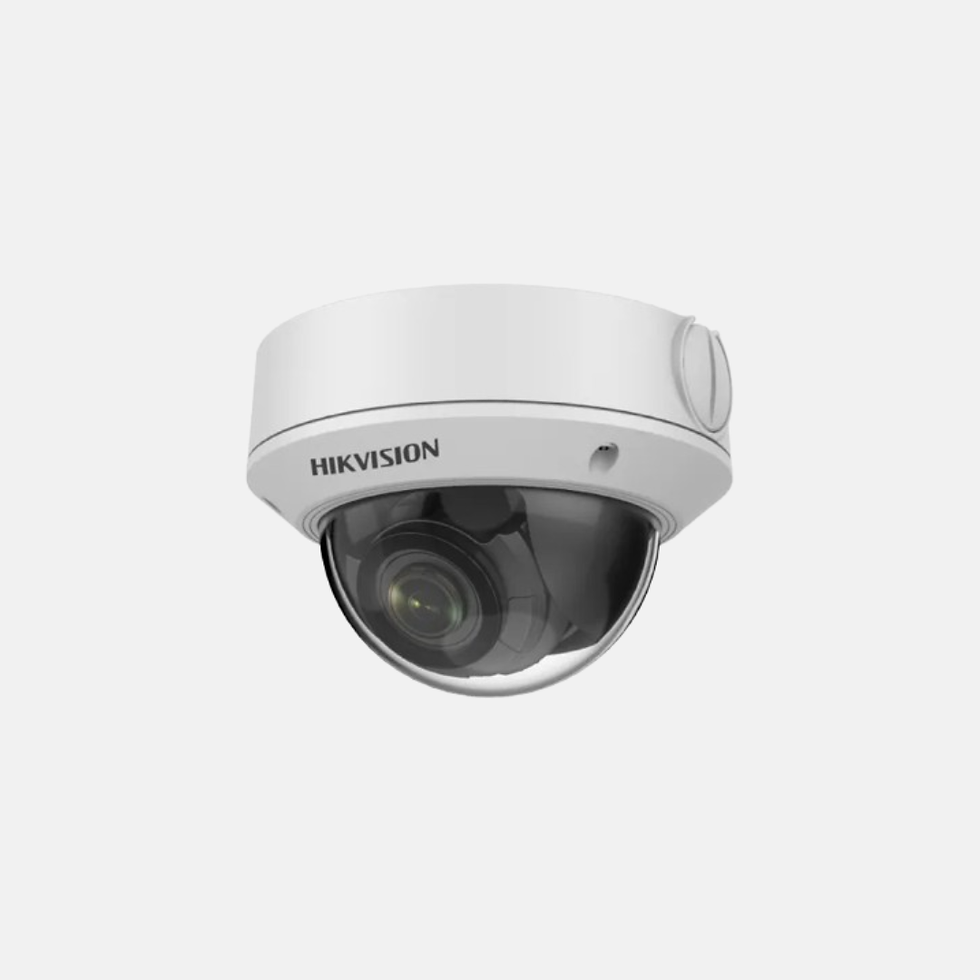

Hikvision 4MP Varifocal Dome Network Camera | DS-2CD1743G0-IZ
$0.00Price
Model no. DS-2CD1743G0-IZ
- Efficient H.265+ compression technology
- High quality imaging with 4 MP resolution
- Up to 256 GB memory card slot for storage
- Water and dust resistant (IP67) and vandal proof (IK10)
Specifications
Image Sensor
1/3" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
Wide Dynamic Range
120 dB
Field of Vision
2.8 to 12 mm: 102° to 31° (H), 54° to 17° (V), 123° to 35° (D)
IR Distance
Up to 30 m
Video Compression
H.265+/H.265/H.264+/H.264
Max. Resolution
2560 × 1440
Max. Frame
50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Working Temperature
-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Material
Metal
Dimensions
Ø 141 mm × 99.9 mm (Ø 5.6" × 3.9")
Weight
Approx. 820 g (1.8 lb.)
