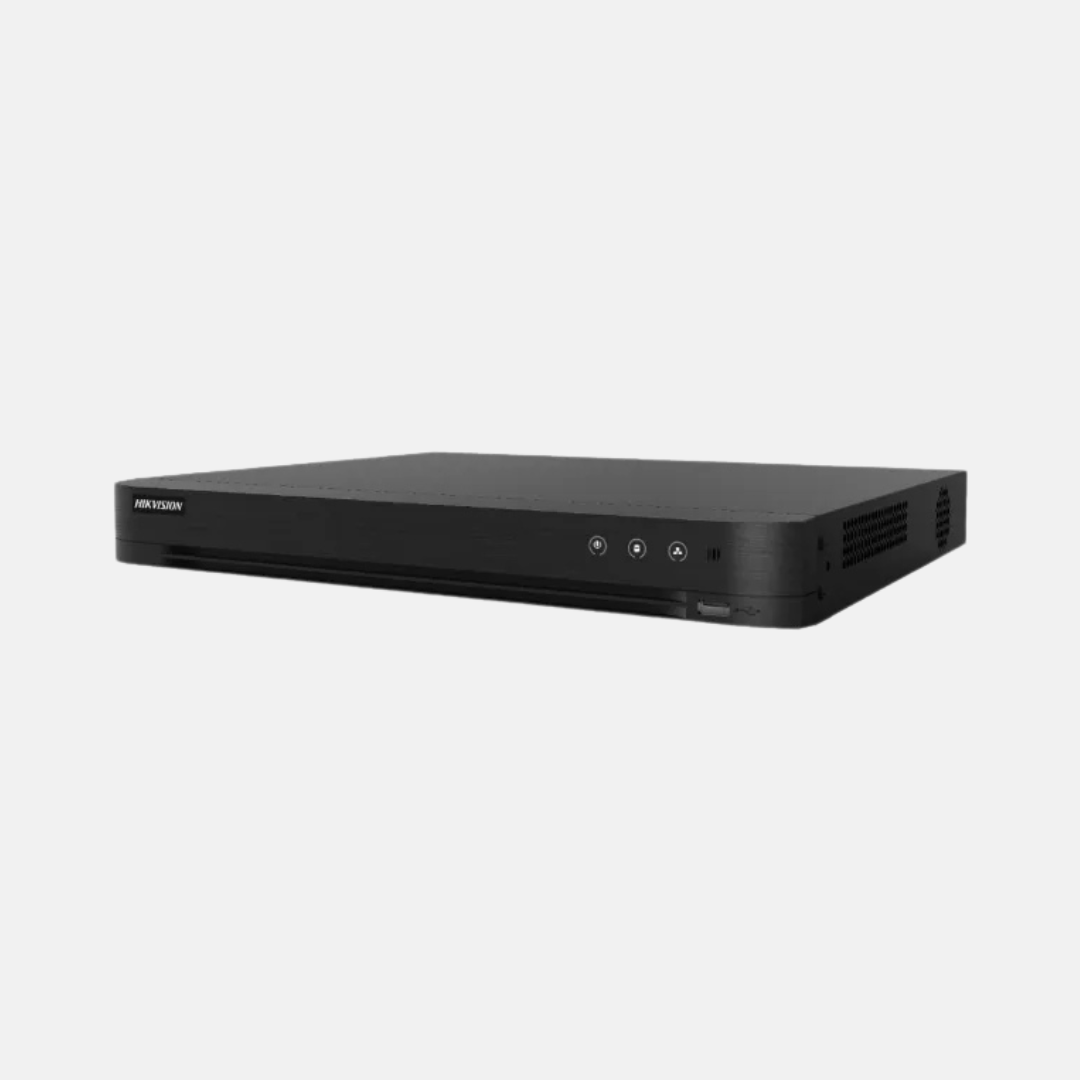

Hikvision 16-ch 5MP 1U H.265 AcuSense DVR | iDS-7216HUHI-M2/S
$0.00Price
- Deep learning-based motion detection 2.0 for all analog channels
- H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 32 network cameras
Specification
Product Specifications
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter ProtectionHuman/Vehicle Analysis
Up to 4-ch
Video compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
Main stream:8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps(N)
IP video input
8-ch (up to 24-ch)Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolutionSupport H.265+/H.265/H.264+ /H.264 IP cameras
Analog video input
16-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
8 MP@15 fps, 5 MP@20 fps, 3K@20 fps,4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps,1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD input
5 MP@20 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input
4 MP@30 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
HDMI output
1-ch, 4K (3840 × 2160)/30Hz,2K (2560 × 1440)/60Hz,1920 × 1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz,HDMI/VGA simultaneous output
Audio input
1-ch (up to 16-ch is optional), RCA (2.0 Vpp, 1 KΩ)
Synchronous playback
16-ch
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Capacity
Up to 10 TB capacity for each disk
Dimension (W × D × H
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD)
≤ 2.1 kg (4.6 lb)
